Overview

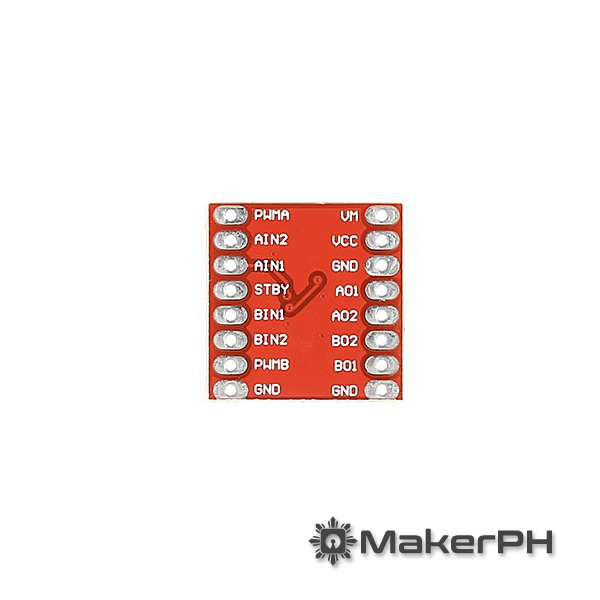

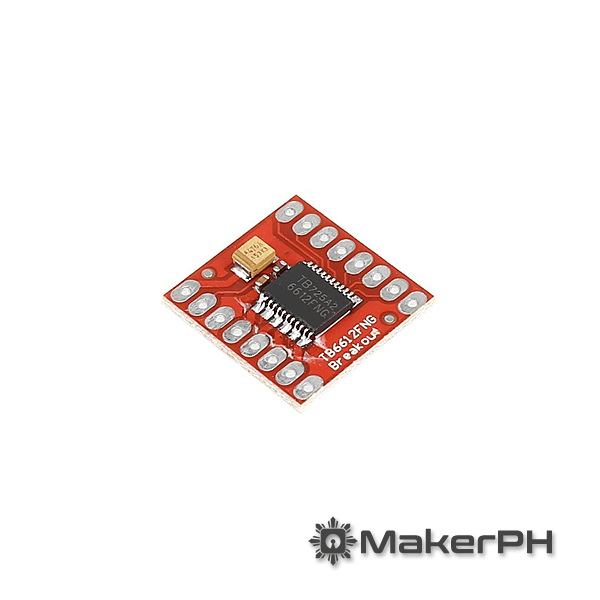

The TB6612FNG Dual DC Motor Driver is a compact and efficient module designed to control two DC motors or one stepper motor with ease. It is widely used in various robotics and automation projects, offering high performance and reliability.
Features
Dual H-Bridge: Control two DC motors or one stepper motor.
Compact Design: Easy to integrate into your projects.
High Efficiency: Low heat generation and power loss.
Wide Voltage Range: Operates from 2.5V to 12V.
High Current Capacity: Each channel can handle up to 1.2A continuously and 3.2A peak.
Built-in Protection: Includes thermal shutdown, overcurrent, and undervoltage lockout.
Specifications
- Motor Voltage: 15V Max
- VCC Voltage: 2.7V – 5.5V
- Continuous Current: 1.2A
- Peak Current: 3.2A
- PWM Frequency: Up to 100kHz
- Dimensions: 20mm x 20mm
Applications
Robotics: Ideal for controlling small robots and vehicles.
Automation: Suitable for automated systems and machinery.
DIY Projects: Perfect for hobbyists and makers.
Package Includes
1 x TB6612FNG Dual DC Motor Driver Module
2 x 8 Pin Header
