Robo Uno Shield for Arduino – The All-In-One Robotics Shield

Robo Uno Shield for Arduino – The All-In-One Robotics Shield

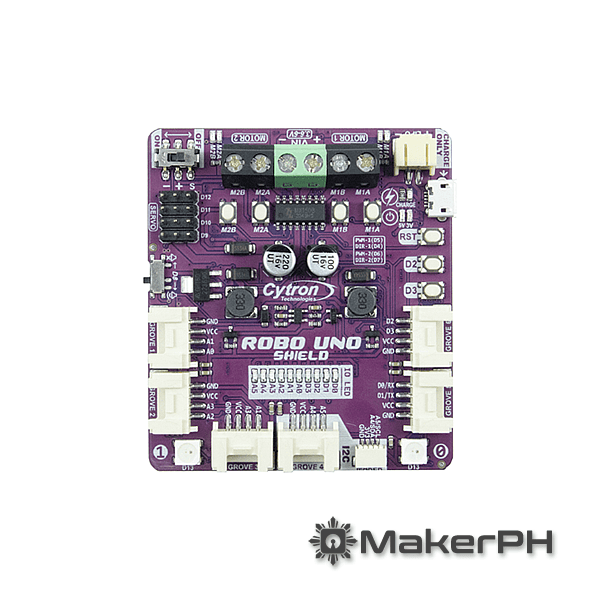

The Robo UNO Shield is a feature-packed expansion board for the Arduino UNO, designed to simplify the development of robotics and automation projects. With built-in motor drivers, sensor ports, and easy-to-use headers, this shield eliminates complex wiring and streamlines prototyping.

Perfect for robotics, motor control, and interactive projects, the Robo UNO Shield provides an all-in-one solution for makers, educators, and hobbyists looking to expand their Arduino UNO’s capabilities.

Robo Uno Shield Key Features

• Integrated Motor Drivers – Control DC motors with ease for robotics applications.

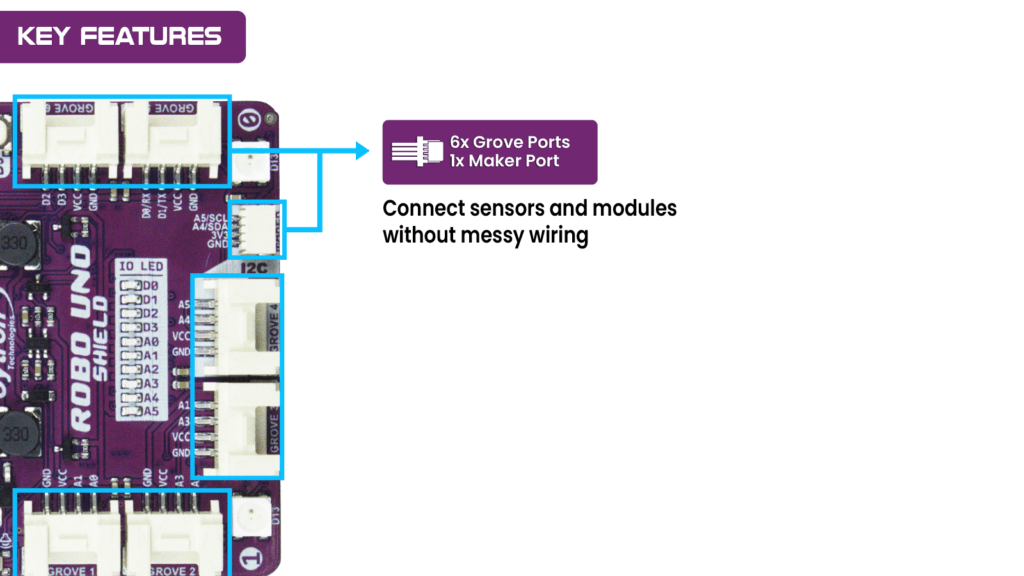

• Plug & Play Sensor Ports – Simplifies connecting various sensors and modules.
• Arduino UNO Compatible – Designed specifically for UNO and compatible boards.
• Simplified Wiring – Reduces the need for external motor drivers and messy connections.
• Ideal for Robotics & Automation – Perfect for educational, hobbyist, and competition projects.

Robo Uno Shield Specifications

• Compatibility: Arduino UNO and compatible boards
• Motor Control: Built-in motor driver for controlling DC motors
• Sensor Ports: Multiple ports for connecting various sensors
• Power Input: 1- cell LiPo/Li-ion batteries, VIN (3.6–6V) terminals, and micro USB
• Applications: Robotics, automation, motor control, interactive projects

Robo Uno Shield Specifications

• Automatic power selection:
  • VIN- Terminal Block (3.6-6V)
  • VBAT- LiPo Port (1-cell LiPo/Li-Ion 3.7V)
  • VUSB- Micro USB Port (5V)
• VCC voltage automatically follow the microcontroller reset pin voltage
• Built-in 1-cell LiPo/Li-Ion charger (over-charged & over-discharged protection)
• Power on/off switch with status LED
• Dual-channel H-bridge motor driver.
  • Include the signature motor Quick test buttons & indicator LEDs.
  • Support motor voltage from 2.5V to 6VDC
  • Maximum current up to 1.0A continuous and 1.5A peak (less than 5 seconds)

Ideal For

✔ Robotics Projects – Easily control motors and sensors for robotic applications.
✔ Automation Systems – Expand Arduino UNO’s capabilities for automation projects.
✔ STEM Education – A great tool for learning programming, electronics, and robotics.
✔ DIY Makers & Hobbyists – Simplifies prototyping and reduces wiring complexity.

Packing List
