Description

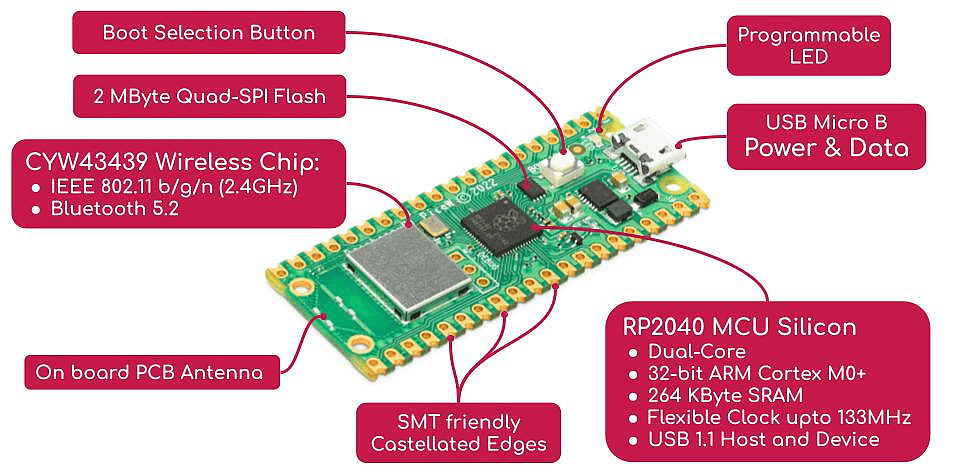

The Raspberry Pi Pico Wireless Board, now with pre-soldered headers, brings the power and versatility of the Pico series with the added convenience of wireless connectivity. This board is ideal for projects that require wireless communication and offers the same compact form factor and powerful processing capabilities as the original Pico.
Key Features
- RP2040 Microcontroller: Dual-core ARM Cortex M0+ processor, running at 133MHz.
- Wireless Connectivity: Built-in Wi-Fi for seamless wireless communication.
- Pre-Soldered Headers: Ready for plug-and-play prototyping, no soldering required.
- Flexible I/O Options: 26 multi-function GPIO pins, including I2C, SPI, and UART.
- Programmable I/O (PIO): For custom peripheral support.
- 2MB On-board Flash Memory: Plenty of space for your applications.
- USB 1.1 Device and Host Support: Versatile connectivity options.
- Low Power Consumption: Ideal for battery-powered projects.
Specifications
- Microcontroller: RP2040 dual-core ARM Cortex M0+ @ 133MHz
- Memory: 264KB SRAM, 2MB Flash
- Connectivity: Built-in Wi-Fi
- I/O Pins: 26 GPIO, 2 x SPI, 2 x I2C, 2 x UART, 3 x 12-bit ADC, 16 x PWM
- USB: 1.1 Device and Host
- Power Supply: 1.8–5.5V DC
- Dimensions: 51mm x 21mm x 3.9mm
Applications
- IoT Devices
- Robotics
- Home Automation
- Wearable Technology
- Educational Projects
What’s Included
- 1 x Raspberry Pi Pico Wireless Board with Pre-Soldered Headers
