Overview
The OLED/LCD HAT (A) is a versatile display module designed for integration with Raspberry Pi. It features both an OLED and an LCD display, offering a flexible solution for various display requirements.
Features
- Standard Raspberry Pi 40PIN GPIO header, compatible with Raspberry Pi series boards
- 2inch IPS LCD Main Screen with built in ST7789VW driver chip, SPI interface communication, wide viewing angle, supports 262K color display, 240×320 resolution
- Dual 0.96inch OLED secondary screens with built in SSD1315 driver chip, I2C interface communication, blue display color, 128×64 resolution, can be used to display key information’s, status indicator messages or small graphics
- Onboard 4x user-defined keys for extended applications
- Comes with online development resources and manual (Raspberry Pi/VisionFive2/Arduino/STM32, etc.)
Specifications
Dual OLED Display
- Size: 0.96 inch
- Resolution: 128×64 pixels
- Interface: I2C
- Color: Blue
- Driver: SSD1315
LCD Display
- Size: 2 inch IPS LCD display
- Resolution: 240×320 pixels
- Color: 262K
- Interface: SPI
- Driver: ST7789VW
- Power Supply: 3.3V/5V
- Dimensions: 65mm x 30mm
Buttons
- Onboard 4x user-defined keys for extended applications

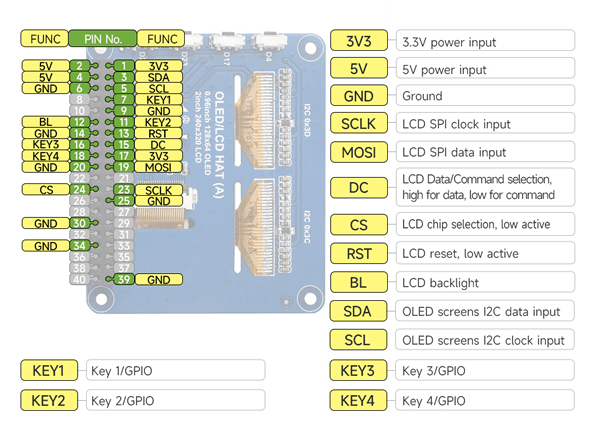

Pinouts

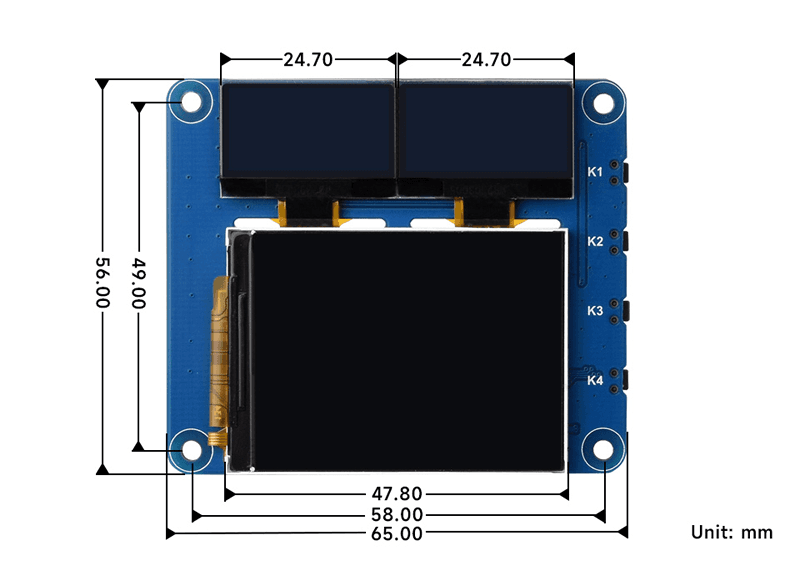

Dimensions
Applications
- IoT Devices: Ideal for displaying data in Internet of Things applications.
- DIY Projects: Perfect for hobbyists and makers looking to add display capabilities to their projects.
- Educational Purposes: Useful for learning about display technologies and interfacing with microcontrollers.
