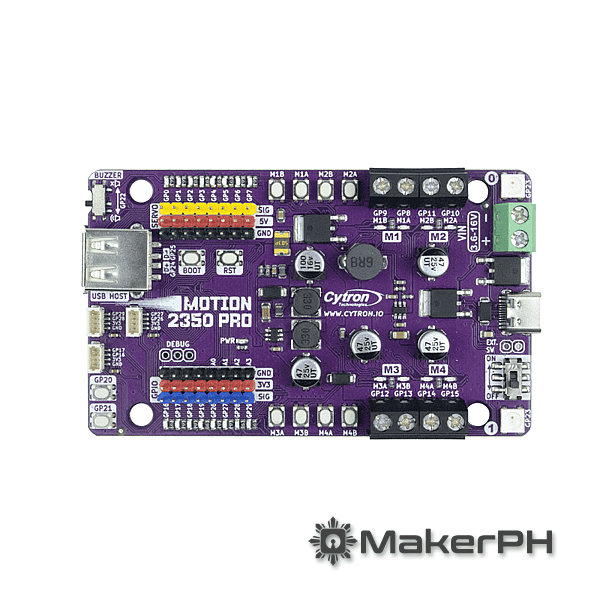

MOTION 2350 Pro – Advanced Robotics Controller

MOTION 2350 Pro – Advanced Robotics Controller for Beginners

The MOTION 2350 Pro is Cytron’s latest advanced robotics controller, built around the newly launched RP2350 processor by Raspberry Pi. Designed for both beginner and intermediate users, this powerful controller minimizes the need to focus on electronics, letting you dive straight into building advanced robots. It’s the ideal solution for hobbyists looking to create sophisticated projects, from robots with mecanum wheels to a wide range of programmable systems.

MOTION 2350 Pro Key Features:

• Advanced Motor Control: Supports up to 4 brushed DC motors with 3A max per channel (3.6V to 16V), perfect for building powerful robots.
• Multiple Connectivity Options: Includes 8-channel 5V servo ports, 8-channel GPIO breakout, and 3 Maker Ports for easy integration of components and sensors.
• USB Host for Gamepad/Joystick: Enables plug-and-play functionality for direct joystick or gamepad control.
• Maker-Friendly Design: GPIO references printed on silkscreen, colored headers for easy connections, built-in motor test buttons, and LEDs for quick testing.
• Software Compatibility: Preloaded with CircuitPython, supporting Python (MicroPython, CircuitPython), C/C++, and Arduino IDE (coming soon).
• Quick Start Demo: Out-of-the-box demo program with melody and running LEDs, push buttons for additional quick tests.

With its rich features and user-friendly design, the MOTION 2350 Pro is perfect for makers who want to focus more on mechanics while exploring advanced robotics projects.

Specifications:

• Powered by Raspberry Pi RP2350
  • Dual-core Arm Cortex-M33 processor
  • 520KB internal RAM
  • 150MHz Frequency Clock
  • 2MByte Flash
• Robot Controller Board
  • 4 x DC Motor Driver (with quick test buttons)
  • 8 x Servo Motor
  • 8 x 3V GPIO Breakout
• Input Power
  • VIN Terminal: 3.6V – 16V
  • USB Type-C: 5V
• Maximum DC Motor Current, each channel
  • Continuous: 3A
  • Peak: 5A
• 24 x Status indicator LEDs
  • 8 x for Servo Port
  • 8 x for 3V GPIO Breakout
  • 8 x for DC Motor Driver
• 12 x Push Button
  • 8 x Quick Test Button for DC Motor
  • 2 x User Button
  • 1 x BOOT Button
  • 1 x RST Button, for reset
• 3 x Maker Port
• 2 x RGB LED (Neopixel Compatible)
• 1 x USB Host
• 1 x Piezo Buzzer (with mute switch)
• 1 x On/Off Switch (with MOSFET Shock-Proof Circuit)
• Preloaded with CircuitPython by default
• Programming Language
  • CircuitPython
  • MicroPython
  • C/C++
  • Arduino (coming soon)
• Board Dimension: 95.2 x 57.2 x 8 (height) mm
