micro:bit GPIO Expansion Board

Overview

The Micro:bit GPIO Expansion Board Bundle offers a comprehensive solution for enhancing the capabilities of your BBC micro:bit. This expansion board unlocks a multitude of possibilities for experimentation, learning, and project development by providing easy access to additional GPIO pins, allowing for seamless integration of sensors, actuators, and other electronic components.

Features

• Works with both the micro:bit V1 and micro:bit V2
• IO expansion board for micro:bit
• Small size, very suitable for DIY

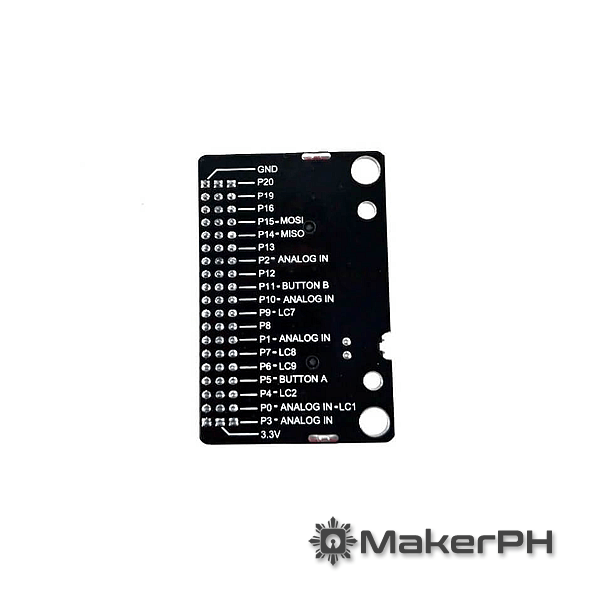

• All IO ports are break-out
• On-board buzzer-you can directly use the music module in MakeCode to play music.
• Two LEGO-compatible pin holes for easy assembly and integration

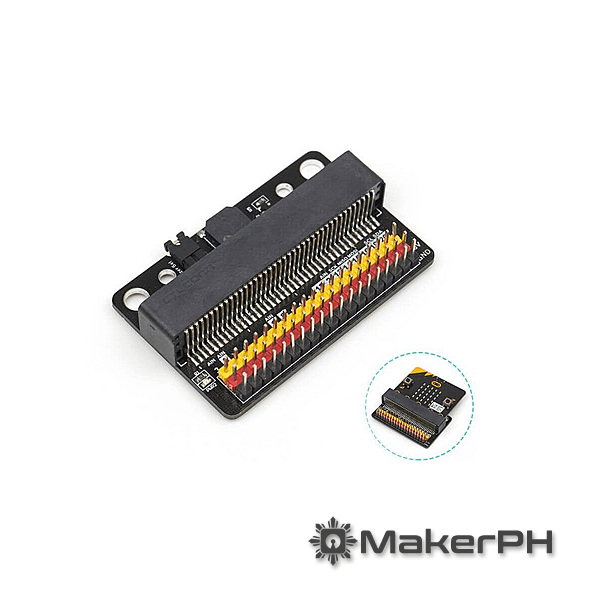

• The 3PIN interface is distinguished by yellow (IO pins), red (3.3V), and black (GND). It is created so that plugging it in the wrong way is difficult, and it is convenient to plug in the sensors.
• Dimensions: 37mm x 57mm
• PCB board thickness: 1.6mm

Applications:

• STEM Education: Ideal for classroom learning, teaching coding, electronics, and robotics.
• DIY Projects: Perfect for hobbyists, makers, and enthusiasts interested in creating innovative projects.
• Prototyping: Accelerate prototyping and experimentation processes for IoT, wearable tech, and automation projects.
