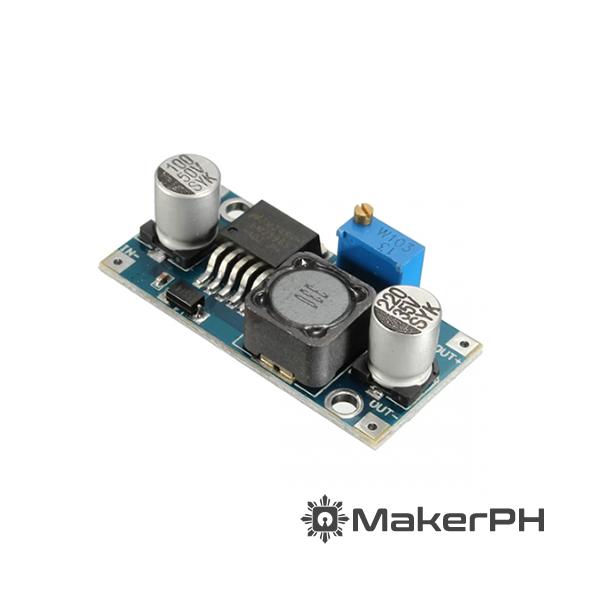

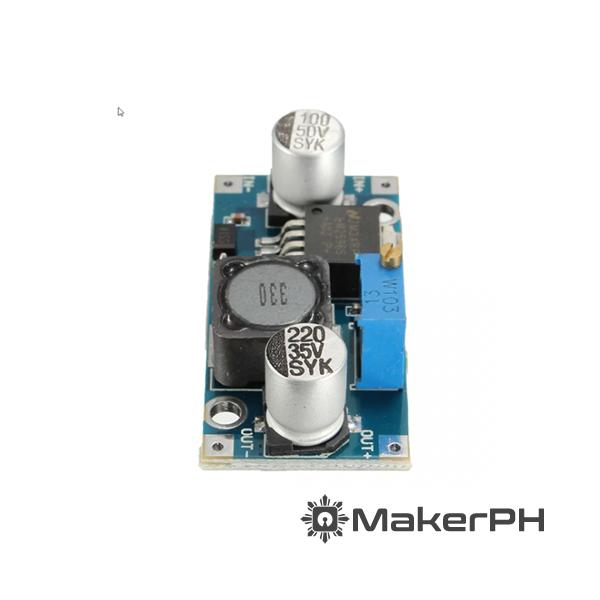

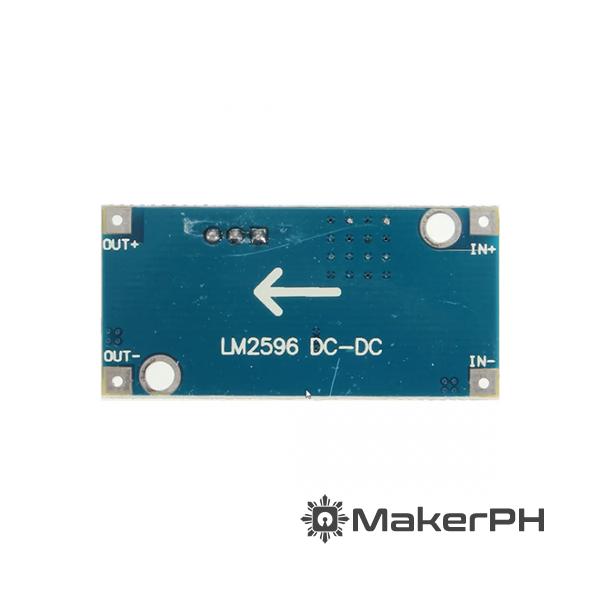

LM2596S Step Down Power Supply Module

Experience reliable and efficient power regulation with the LM2596S Step-Down Power Supply Module. This versatile module is designed to provide stable DC voltage output from a higher voltage source, making it an indispensable component for various electronic projects, from hobbyist endeavors to professional applications.

LM2596S Key Features

  • Efficient Voltage Regulation: The LM2596S module efficiently steps down input voltage to a desired lower voltage, offering consistent and reliable power output.
  • Wide Input Voltage Range: With an input voltage range of 4.5V to 40V, this module accommodates a variety of power sources, including batteries, AC adapters, and solar panels.
  • Adjustable Output Voltage: Users can easily adjust the output voltage using the onboard potentiometer, providing flexibility to meet specific project requirements.
  • High Conversion Efficiency: Equipped with a highly efficient switching regulator, this module boasts low heat generation and high conversion efficiency, ensuring optimal performance and prolonged component lifespan.
  • Overcurrent and Overtemperature Protection: Built-in overcurrent and overtemperature protection safeguards the module and connected devices from potential damage due to excessive current or temperature.
  • Compact and Durable Design: The LM2596S module features a compact form factor and robust construction, making it suitable for integration into various electronic devices and projects.
  • Easy to Use: With straightforward wiring and intuitive operation, this module is ideal for both beginners and experienced electronics enthusiasts.

LM2596S Applications

  • DIY Electronics Projects
  • Battery-Powered Devices
  • Voltage Regulation in Automotive Systems
  • Solar Power Systems
  • Industrial Automation
  • Robotics
Weight 0.01 kg
Dimensions 4.3 × 2.1 × 1.4 cm
Input Voltage

4.5V to 40V

Output Voltage

1.25V to 37V (Adjustable)

Output Current

Up to 3A

Conversion Efficiency

Up to 92%

Operating Temperature

-40°C to +85°C
