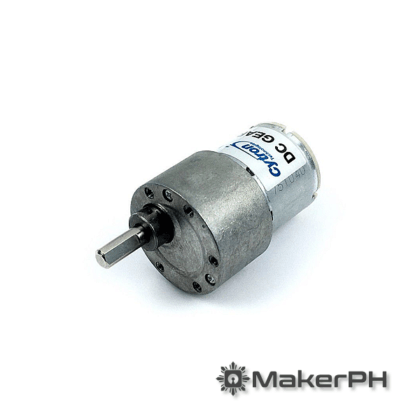

12V 380RPM 1.4kgfcm High Power Brushed DC Geared Motor

Overview

The SPG30HP series is an enhanced version of the SPG30 gear motor, designed to deliver higher speed and torque. This motor is perfect for applications that require robust performance, but it’s important to note that the increased power comes with higher current draw and power consumption.

Product Details

The SPG30 motor has been a reliable choice for makers, and the SPG30HP series builds on that legacy with improved capabilities. The motor features a 30:1 gearhead, producing 137mN.m of torque and reaching speeds up to 380 RPM. It is essential to use a DC motor driver capable of handling at least 5 Amps of current to ensure optimal performance and safety.

Features

• Rated Voltage: 12VDC
• No Load Current: < 0.3A
• No Load Speed: 380 RPM
• Rated Load Torque: 137mN.m (1.4kgf.cm)
• Rated Current: < 1A
• Rated Load Speed: 300 RPM
• Weight: 160g
• Gear Ratio: 30:1
• Shaft: D-shaped with 6mm diameter, 15.5mm in length

Packing List

• 1 x 12V 380RPM 1.4kgfcm High Power Brushed DC Geared Motor
