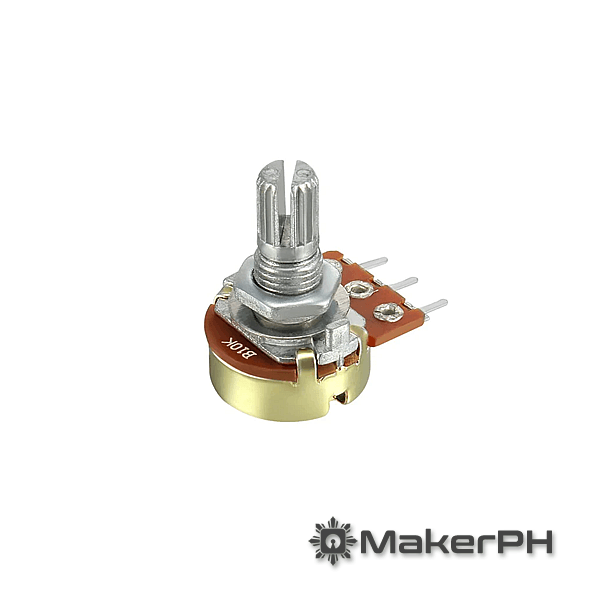

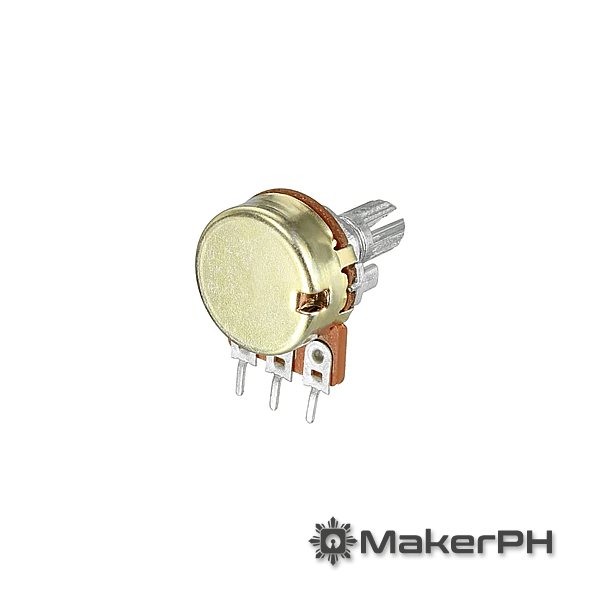

10k Potentiometer

10k Potentiometer

The 10k potentiometer is a versatile variable resistor used in various electronic applications such as volume controls, dimmer switches, and sensor calibration. This potentiometer offers precise resistance adjustment with a total resistance of 10 kilohms. With its three-terminal design, it allows for easy integration into circuits, providing smooth and reliable control over voltage levels.

Potentiometer Key Features

• 10k ohm resistance
• Three-terminal design
• Smooth rotation for precise adjustment
• Durable construction for long-lasting performance
• Versatile applications in electronics projects

Applications

• Volume controls in audio systems
• Dimmer switches for lighting control
• Sensor calibration in electronic instrumentation
• Circuit tuning and adjustment
• Educational projects and experiments

Specifications

• Resistance: 10k ohms
• Tolerance: ±10%
• Power Rating: 0.1 watt
• Operating Temperature Range: -10°C to +85°C
• Mechanical Rotation Angle: 270°
• Terminal Type: Through Hole
• Mounting Type: Panel Mount
• Dimensions:
  Diameter: 15mm
  Shaft Length: 20mm
  Total Length: 30mm
