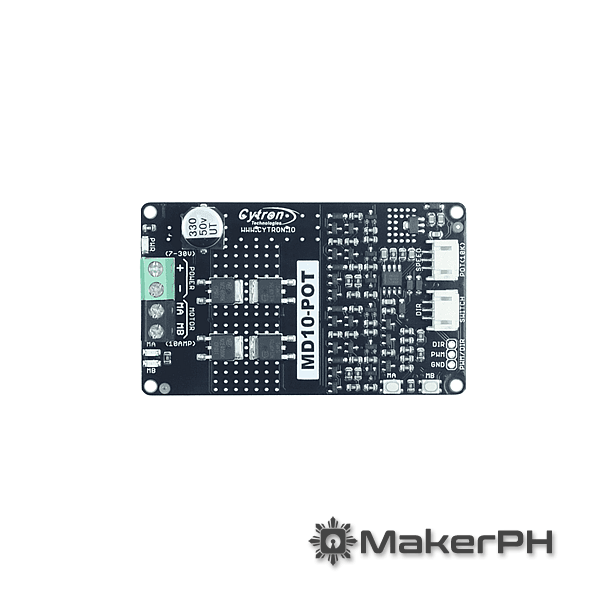

10 Amp 7V-30V Potentiometer & Switch Control DC Motor Driver (MD10-POT)

MD10-POT – 10 Amp 7V-30V Potentiometer & Switch Control DC Motor Driver

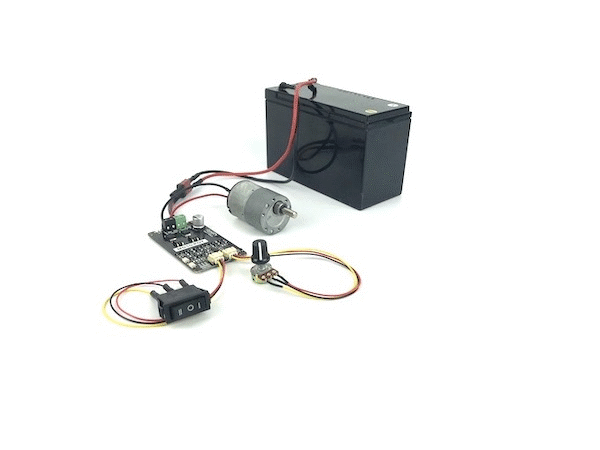

The 10A 7V-30V Potentiometer and Switch Control DC Motor Driver is a robust and versatile motor driver designed for controlling DC motors in a wide range of applications. With its integrated potentiometer and switch control, this motor driver allows for easy and precise speed and direction control of your DC motors.

MD10-POT Features

• Wide Voltage Range: Supports a voltage range of 7V to 30V.
• High Current Capacity: Can handle up to 10A of continuous current 30A peak.
• Bidirectional control for one brushed DC motor.

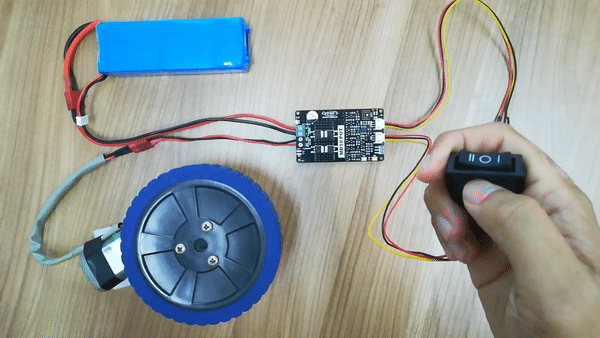

• Control motor run/brake and direction with a 3-way rocker switch (included in package).

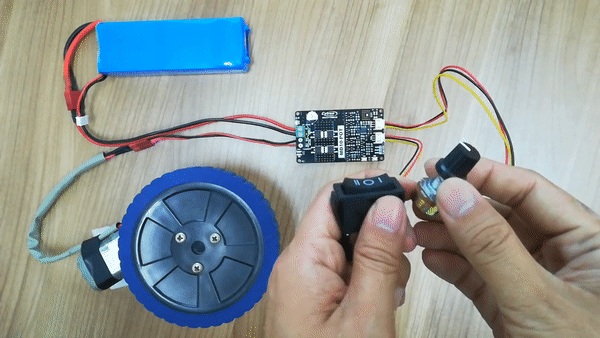

• Control motor rotation speed with a potentiometer (included in package).
• Buttons for quick testing.
• LEDs for motor output state.
• PWM and DIR inputs.
• Compatible with sign-magnitude and locked-antiphase PWM operation.
• Regenerative Braking.

MD10-POT Specifications

• Input Voltage: 7V to 30V DC
• Continuous Current: 10A
• Control Method: Potentiometer for speed, switch for direction
• Protection: Over-temperature, over-current, under-voltage
• Dimensions: 60mm x 45mm x 28mm
• Weight: 45g

Package Contents:

• 1 x MD10-POT

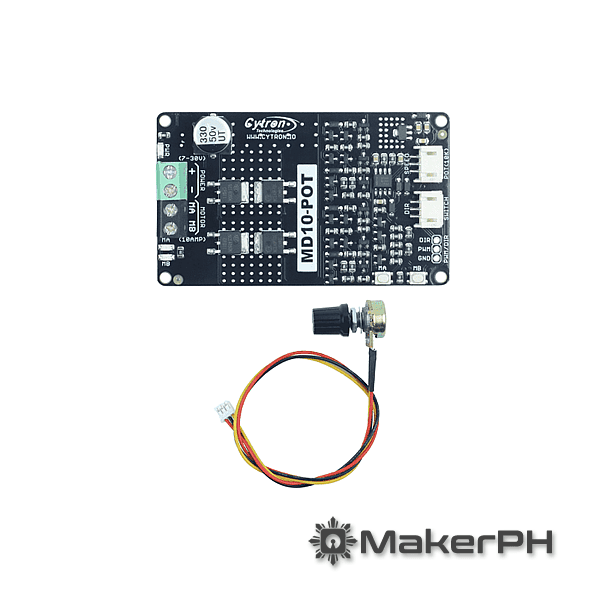

• 1 x 10kOhm Potentiometer with connector
• 1 x 3-Way Rocker Switch with connector
• 1 x Quick Start Guide Card
